Beyond the Dip: Why Duplex Coatings (HDG + Powder) are Essential for Australian Coastal Assets

Australia is defined by its coastline. From major city skylines to critical infrastructure, countless assets face a relentless enemy: the harsh Australian coastal environments. The combination of salt-laden air, high humidity, intense UV radiation, and daily thermal cycling creates one of the most aggressive environments on Earth for steel structures.

For engineers, fabricators, and project managers, the challenge is not just to protect steel, but to protect it for decades without costly maintenance cycles. In this battle for longevity, a single-layer coating—even the most robust—is often not enough. The definitive solution, and the gold standard in corrosion control for critical assets, is the Duplex Coating System: the synergy of Hot-Dip Galvanizing (HDG) followed by a high-performance powder coat.

The Two Threats: Corrosion and Compromise

Before diving into the solution, it’s vital to understand the two primary threats to metal assets:

1. The Relentless March of Corrosion

Australian Standards (AS/NZS 2312) classify coastal zones as C4 (high) to C5 (very high) corrosivity environments. In these conditions, rust forms rapidly, compromising structural integrity and leading to premature failure.

Hot-Dip Galvanizing (HDG) offers sacrificial protection. A layer of zinc is metallurgically bonded to the steel, acting as an anode that is consumed instead of the steel substrate. Even if the zinc is scratched, it continues to protect the exposed steel for a significant period. This robust barrier provides excellent long-term protection against immediate attack.

2. The Limits of Single Coatings

While HDG is excellent, it is a grey, dull finish that offers limited aesthetic choice and can be susceptible to surface degradation from UV exposure over time. Conversely, a standard powder coat offers superb aesthetic appeal and a physical barrier, but if this barrier is breached—a deep scratch or chip—corrosion will begin at that point and spread underneath the coating.

The Duplex system addresses these limitations by providing two, fundamentally different layers of protection.

The Duplex System Defined: 1 + 1 = 3

A Duplex coating is not just layering one material on top of another; it’s a synergistic system where the performance of the two combined layers is greater than the sum of their individual parts.

1. The Sacrificial Layer (HDG): The initial, underlying layer of zinc sacrifices itself to protect the steel. This is the primary defence against the onset of rust.
2. The Barrier Layer (Powder Coating): The topcoat of powder provides a tough, seamless, non-porous physical barrier. This barrier dramatically slows the consumption rate of the underlying zinc layer.

This synergistic effect, often quantified as the “Duplex Multiplier,” can extend the life of the coating system by 1.5 to 2.5 times the sum of the expected lives of the two systems applied independently. For example, if HDG is expected to last 20 years and the powder coat 10 years, the Duplex system can last 30 to 50 years before major maintenance is required, delivering unmatched industrial durability

The Superior Coaters Difference: Mastering Pre-Treatment

The most critical—and often mishandled—step in a Duplex application is the preparation of the galvanised surface before the powder coat is applied. This is where many coaters fail, leading to blistering, peeling, and premature system failure. Superior Coaters eliminates this risk through a rigorous, specialised process:

The Essential 4-Stage Pre-Treatment for HDG Steel

The key to a long-lasting Duplex finish is ensuring the powder can adhere perfectly to the galvanised surface, which can have residual contaminants or a waxy finish. Our process involves:

1. Preparation (Sweep Blasting): Unlike sandblasting, which is too aggressive, sweep blasting (a very light abrasive blast) or a meticulous zinc phosphate chemical treatment [link:] is used to remove impurities, oxides, and any reactive zinc compounds without removing too much of the protective zinc layer itself. This creates the optimal micro-profile for powder adhesion.
2. Passivation: A chemical treatment is applied to further cleanse and prepare the surface, ensuring there is no remaining contamination that could impede bonding.
3. Primer Application: For severe coastal environments, a specialised zinc-rich epoxy primer is often applied. This step provides an additional layer of corrosion protection and acts as a superb bond coat between the HDG and the final topcoat.
4. Electrostatic Topcoat Application: A high-performance powder, formulated for excellent UV resistance and weather-resistance, is electrostatically applied and then cured.

This meticulous approach ensures the Duplex system performs to its maximum potential, providing a flawless, warranted finish.

Handling Australia’s Biggest Assets

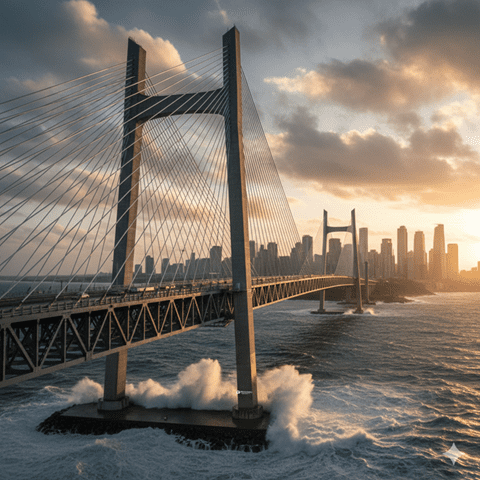

The Duplex system is typically specified for large, structural components where failure is not an option: bridge components, motorway gantries, large shade structures, and industrial platforms. These projects present a logistical challenge: how do you coat an oversized component effectively and consistently?

Superior Coaters solves this problem by having one of the largest capacity facilities in Australia. Our ability to handle oversized structures  up to 14 metres in length in our oversize powder coating 14m ovens ensures:

• Uniform Quality: Whole components can be coated in a single run, eliminating the need for splicing or joining smaller sections that can compromise coating consistency.
• Reduced Handling: Less component handling means less risk of damage or surface contamination between processes.
• Project Efficiency: Large-scale capacity delivers faster turnaround times for critical infrastructure projects, helping major construction and engineering firms meet strict deadlines.

Duplex Economics: Calculating Long-Term Value

When evaluating coatings, a simple cost comparison of powder coating vs paint is insufficient. A Duplex system’s value is found in its Life Cycle Cost (LCC).

• Decades of Service: A correctly applied Duplex system on a coastal asset can easily achieve a 30-50 year maintenance-free lifespan.
• Avoided Costs: The expense and disruption of mid-life coating repairs, scaffolding, and re-application—especially on bridges or high-rise structures—dwarfs the initial coating cost. A Duplex finish virtually eliminates these high-access maintenance requirements.
• Warranted Confidence: As a Dulux-accredited powder coater, our Duplex solutions are often backed by high-tier manufacturer warranties, providing an extra layer of confidence for clients and specifiers.

In essence, when choosing an industrial coating system for a structural asset on the Australian coast, specifying a Duplex system is an investment in certainty.

Conclusion: The Unbeatable Choice

For structures that must withstand the worst of the Australian climate, the Duplex coating system offers an unparalleled combination of sacrificial and barrier protection. It is a proven, high-performance method that significantly extends the maintenance-free life of steel assets. By partnering with a specialist like Superior Coaters—who have the capacity and the technical expertise in pre-treatment to correctly apply the system to oversized structures —you ensure your project benefits from maximum corrosion resistance, unmatched industrial durability and the lowest possible Life Cycle Cost.
